High Valley 2500 Catalytic

DOCUMENTATION

Owner's Manual | PDF
Maintenance Guide | PDF
Wiring Diagram | PDF

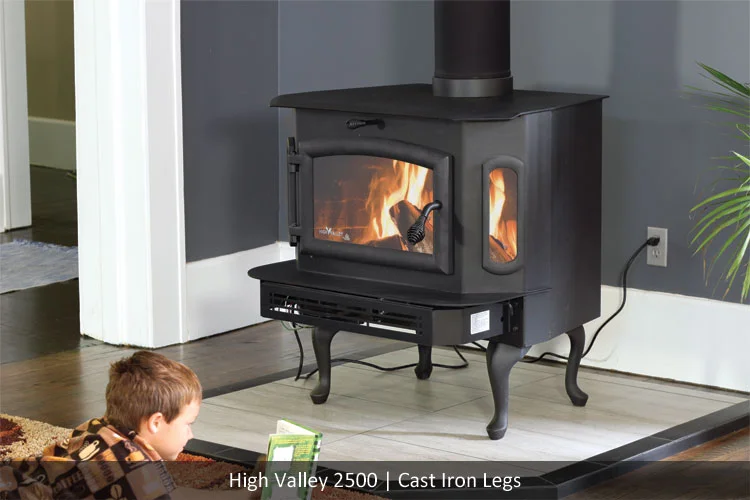

When you choose the 2500 bay window stove, you realize an efficient, aesthetically pleasing unit that will transform your heating needs and add appeal to your home. The unit comes standard with High Valley's unique air wash system to keep the view of the fire clear. Over 3.5 cu. ft. firebox coupled with 3-speed speed blower will heat up to 2,500 sq. ft.

Size

  • Width: 32.5"
  • Height: 24"*
  • Depth: 27.5"
  • Weight: 565 lbs.

*Legs or Pedestal adds 10" to height.

FIREBOX DETAILS

  • Firebox Size: 3.5 cu. ft.
  • Wood Size: 22"
  • Flue: 8"
  • Emissions: 3.1 grams/hr.

Performance

  • Burn Time: 12-15 hrs.
  • Est. BTUs: 55,000
  • Heat Area: 1,200-2,500 sq. ft.
  • Blower: 200 CFM
